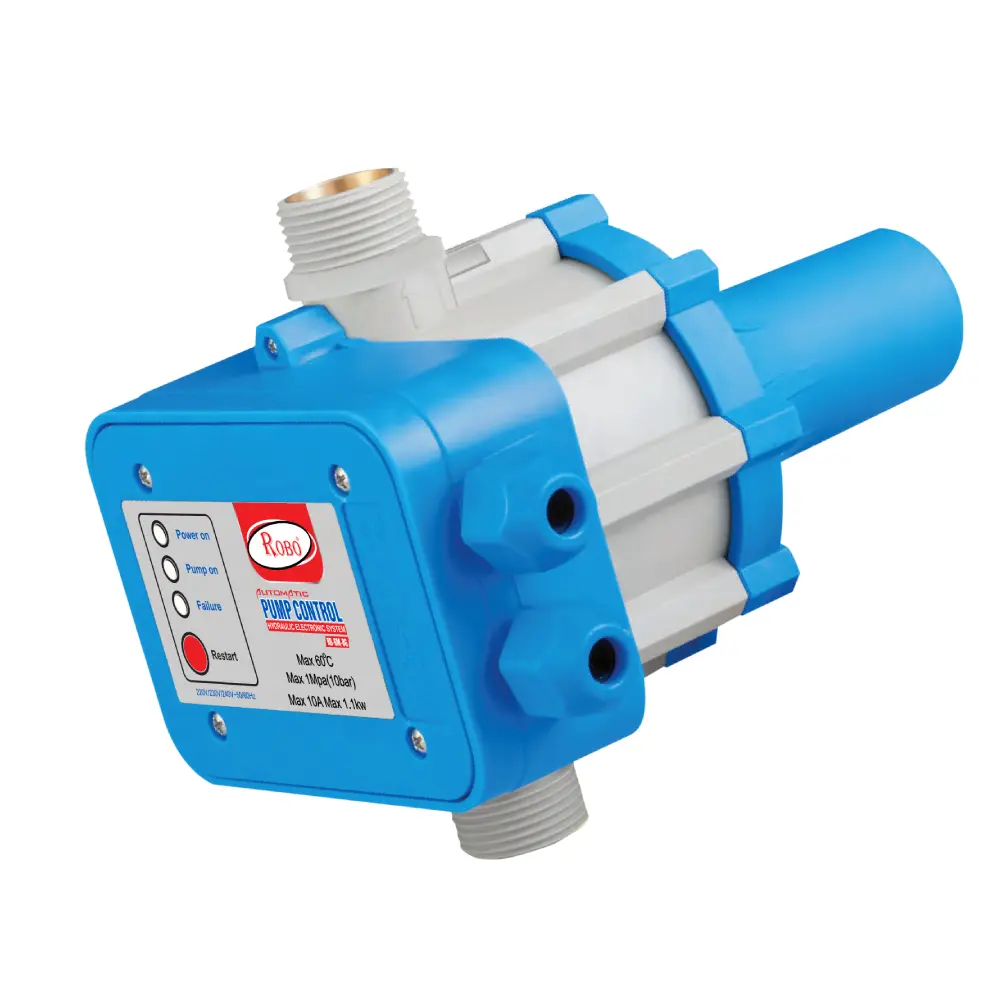

Precision Flow Management: ROBO Automatic Pump Control RB-GM-BG
Smart Pressure Management System: Intelligent Electronic Water Pump Regulator
The ROBO Automatic Pump Control RB-GM-BG is a state-of-the-art solution designed to automate and optimize the performance of residential and commercial water pumps. This Intelligent Electronic Water Pump Regulator eliminates the need for bulky traditional pressure tanks and manual switches by providing a sophisticated, solid-state control interface. The RB-GM-BG is engineered to detect changes in pipeline pressure and flow, automatically starting the pump when a tap is opened and stopping it once the demand ceases. This seamless operation ensures a constant, high-pressure water supply for showers, irrigation systems, and household appliances without the annoying fluctuations common in manual systems.
Advanced Dry-Run Prevention: Secure Motor Protection Technology
Safety and longevity are the hallmarks of the ROBO Automatic Pump Control RB-GM-BG. One of its most critical features is the integrated Secure Motor Protection Technology, which includes a high-sensitivity dry-run protection sensor.1 In the event that the water source (such as a tank or well) runs dry, the RB-GM-BG intelligently detects the lack of flow and immediately shuts down the pump to prevent the motor from overheating or burning out. This automated fail-safe significantly extends the lifespan of your pumping hardware and reduces the risk of costly electrical repairs. The unit also features a manual reset button, allowing users to easily restart the system once the water supply has been restored.
Industrial-Grade Pressure Switch Design: Heavy-Duty IP65 Weatherproof Controller
Built to endure the demanding environments often found in pump rooms or outdoor installations, the ROBO Automatic Pump Control RB-GM-BG features an Industrial-Grade Pressure Switch Design. The housing is constructed from high-impact, reinforced techno-polymer and is rated IP65, ensuring complete protection against dust ingress and low-pressure water jets from any direction. This Heavy-Duty Weatherproof Controller is designed to handle a maximum working pressure of 10 bar and is compatible with standard 1-inch (G1″) male connections, making it a universal fit for most centrifugal, jet, and submersible pumps up to 1.1kW (1.5HP).
Simplified Installation Workflow: Professional Grade Pump Accessory
The ROBO Automatic Pump Control RB-GM-BG is designed for the professional plumber and the DIY enthusiast alike, offering a Simplified Installation Workflow. Unlike traditional mechanical pressure switches, the RB-GM-BG requires no complicated calibration of springs or contacts. It comes pre-set with a standard starting pressure of 1.5 bar, though it remains adaptable to various plumbing heights and configurations. The unit features clear LED status indicators for “Power On,” “Pump On,” and “Failure,” providing at-a-glance diagnostics for the entire water system. Backed by the ROBO reputation for reliability, the RB-GM-BG is the ultimate upgrade for modern, efficient water management.
🌟 Technical Specifications: RB-GM-BG Series
| Feature | Specification Details |
| Model Number | RB-GM-BG |
| Input Voltage | 220V – 240V AC |
| Frequency | 50 / 60 Hz |
| Max Current | 10A (Optional 30A versions available) |
| Max Power Support | 1.1 kW (1.5 HP) |
| Starting Pressure | 1.5 Bar (Pre-set) |
| Max Working Pressure | 10 Bar |
| Connection Size | G1″ (1-inch) Male Thread |
| IP Rating | IP65 Waterproof/Dustproof |
| Max Liquid Temp | 60°C |
| Safety Features | Dry-Run Protection & Manual Reset |
| Indicators | LED Power, Run, and Failure Lights |
