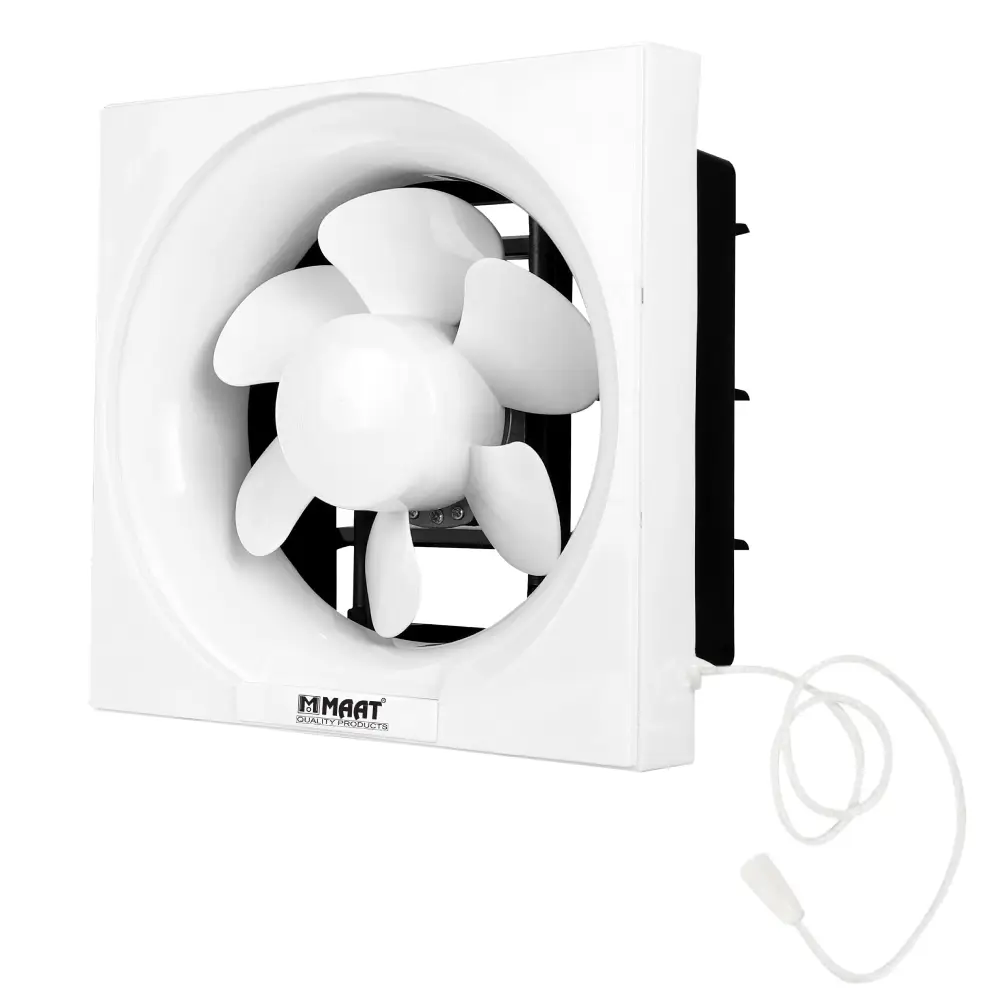

Premium 12" Ventilating Fan with Rope

Maximum Displacement Manual Premium 12″ Ventilating Fan with Rope MVF-SQ12-WR is the most powerful manual-control unit in the professional ventilation series, engineered for extreme air turnover in massive residential and commercial spaces. Identified by the model code MVF-SQ12-WR, this 300mm (12-inch) powerhouse features a reinforced pull-cord mechanism, providing a standalone operation solution that does not require independent wall-switch wiring. This makes the Maximum Displacement Manual Premium 12″ Ventilating Fan with Rope MVF-SQ12-WR an essential installation for oversized commercial kitchens, large warehouses, and high-occupancy public restrooms where immediate, tactile control over heavy steam, smoke, and industrial odors is required to maintain air safety and clarity.

Architectural Impact of the Manual Premium 12″ Ventilating Fan MVF-SQ12-WR

Despite its imposing 300mm aperture and industrial capacity, the Manual Premium 12″ Ventilating Fan MVF-SQ12-WR maintains a clean, professional aesthetic. The exterior housing features an expansive, square-louvered faceplate finished in a high-gloss white that is UV-stabilized to prevent yellowing and environmental staining. Constructed from high-impact Fresh PP Plastic, the chassis is naturally resistant to chemical corrosion and the effects of high humidity. The 300mm intake area is scientifically optimized to maximize suction velocity while masking the powerful internal motor assembly. The manual pull-cord is strategically positioned for accessibility, providing a reliable and intuitive interface for managing massive volumes of air in professional environments without disrupting the modern architectural lines of the facility.

Industrial-Grade Core and Motor Reliability

The technical superiority of the Manual Premium 12″ Ventilating Fan MVF-SQ12-WR is rooted in its heavy-duty internal engineering. It is powered by a high-torque 100% pure copper winding motor, a critical feature for maintaining the extreme RPMs necessary to clear a large-format room. Copper’s superior thermal efficiency ensures the motor runs cooler and resists degradation significantly better than standard aluminum alternatives. For unparalleled safety, the motor is equipped with built-in thermal fuse protection, acting as a fail-safe to prevent overheating during continuous high-load operation. This robust motor is paired with a precision-balanced, oversized impeller, ensuring that the Manual Premium 12″ Ventilating Fan MVF-SQ12-WR delivers constant, extreme-velocity extraction even in systems with significant air resistance.

Extreme Performance Capacity and Functionality

Functionally, the Manual Premium 12″ Ventilating Fan MVF-SQ12-WR is the ultimate tool for atmospheric management, moving air at rates typically exceeding 600–750 m³/h. This shutterless model is designed to prioritize raw extraction power by removing all physical barriers from the air path, making it the most efficient solution for clearing massive rooms of airborne contaminants. Operating on a standard 220-240V / 50Hz input, the fan utilizes “Advanced-Drive” technology to balance its massive displacement with a smooth sound profile. The reinforced pull-cord is built for heavy-duty industrial usage, providing a dependable on/off cycle for years. With its reinforced mounting chassis, the Manual Premium 12″ Ventilating Fan MVF-SQ12-WR is the premier choice for facilities seeking an industrial-strength, manual-control ventilation system that combines extreme power with a classic, user-friendly interface.

Key Technical Features

Finish: Gloss White, high-density Fresh PP Plastic with UV-stabilized properties.
Style: Extra-large 12-inch (300mm) square-louvered shutterless fan with a manual pull-cord.
Functionality: Extreme high-volume air displacement with an integrated manual on/off rope.
Construction: Industrial-grade 100% pure copper winding motor with thermal fuse protection.
Mounting/Installation: Heavy-duty reinforced chassis optimized for high-capacity wall or ceiling mounting.
