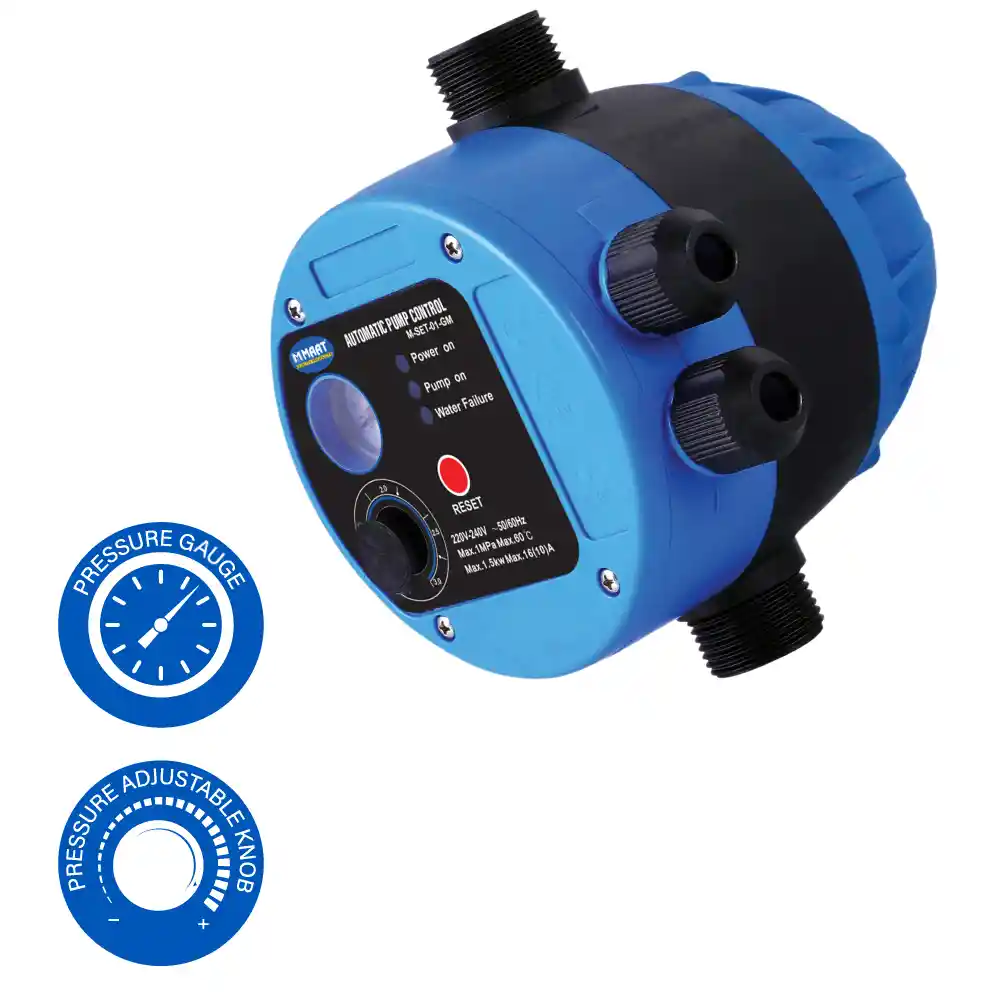

MAAT Automatic Pump Control M-SET-01-GM is a highly efficient and versatile device from MAAT QUALITY PRODUCTS. Designed to automate the operation of water pumps, this unit provides a modern solution for managing water pressure and flow. It features an integrated pressure gauge for real-time monitoring and a manual switch with “MANUAL-AUTO-OFF” settings. This functionality allows for flexible operation, giving users the option to run the pump automatically based on demand or manually for specific tasks. The control unit also includes indicator lights for “POWER” and “RUN” to provide clear status feedback. Manufactured in P.R.C., the M-SET-01-GM model is also CE certified, ensuring it meets European standards for health, safety, and environmental protection.
Key Features and Performance Metrics of Automatic Pump Control M-SET-01-GM
- Dual Operation Mode: The “MANUAL-AUTO-OFF” switch offers convenience and control over the pump’s operation.
- Integrated Pressure Gauge: A built-in pressure gauge provides accurate pressure readings from 0 to 10 Bar.
- High Power and Current: The unit is capable of handling a maximum power of 1.1kW and a maximum current of 10A.
- Durable and Protected: With an IP65 ingress protection rating, the device is well-protected against dust and low-pressure water jets from any direction.
- Standard Connections: The control unit is designed with an R1″ connection thread for compatibility with standard plumbing systems.
- Electrical Specifications: It operates on a rated voltage of 220V-240V and a frequency of 50/60Hz.
General Applications and Use Cases
The MAAT Automatic Pump Control M-SET-01-GM is a versatile device suitable for a wide range of applications where a pump is used to supply water.
- Domestic Water Supply: It provides a reliable and consistent water supply for homes that draw water from a well, borewell, or storage tank. The automatic mode ensures the pump turns on when a tap is opened and turns off when it is closed, maintaining stable pressure.
- Irrigation Systems: The unit can be integrated into garden and landscape irrigation systems, ensuring the pump operates efficiently only when water is needed.
- Pressure Boosting: For buildings with low municipal water pressure, this control unit can be used with a booster pump to maintain a comfortable and consistent pressure level throughout the property.
- Dry-Running Protection: A key safety feature of this product is its ability to protect the pump from running without water, a condition that can cause severe damage to the motor.
Essential Safety Measures and Best Practices
To ensure safe and reliable operation, it is essential to follow these guidelines when installing and using the MAAT Automatic Pump Control.
- Professional Installation: Due to the electrical and plumbing components involved, installation should be performed by a qualified professional to ensure all connections are secure and up to code.
- Electrical Safety: Always ensure the power supply is disconnected before installation or maintenance. The unit should be connected to a properly grounded circuit.
- Fluid Compatibility: The control unit is designed for use with clean water. Pumping flammable, corrosive, or other non-approved liquids can damage the unit and create a safety hazard.
- Environmental Protection: While the IP65 rating provides excellent protection against dust and water jets, the unit should be installed in a location protected from extreme weather and freezing temperatures to ensure its longevity.
Why Choose the MAAT M-SET-01-GM?
The MAAT Automatic Pump Control M-SET-01-GM combines robust functionality with user-friendly features. The combination of automatic and manual modes, along with a clear pressure gauge and indicator lights, makes it a reliable and convenient solution for any pump system. Its high IP rating and CE certification confirm its quality and safety, making it a smart choice for both domestic and professional applications.

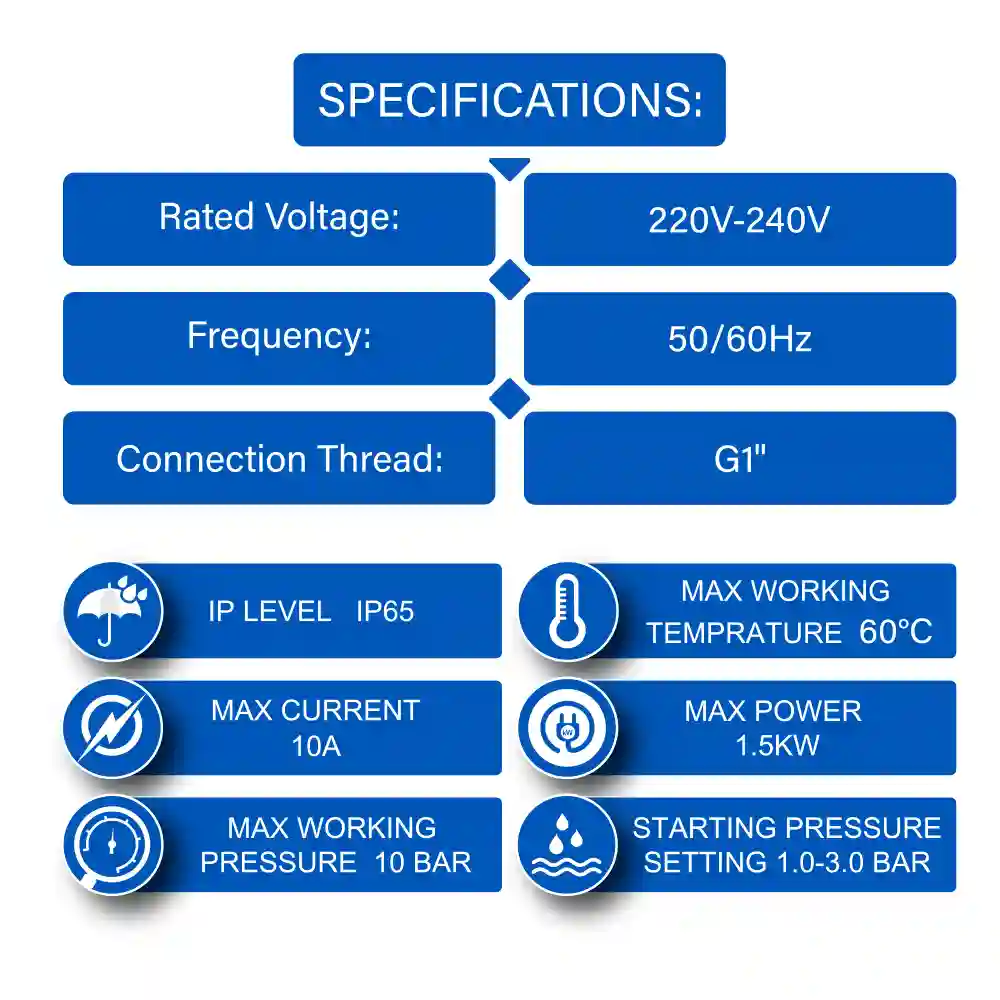

Specifications of Automatic Pump Control M-SET-01-GM
